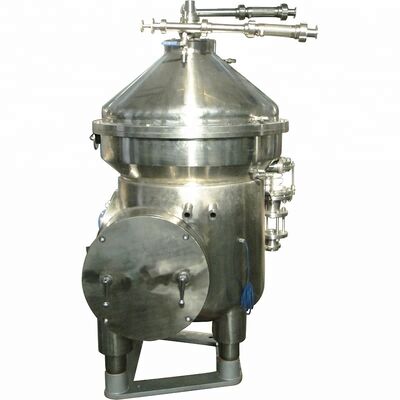

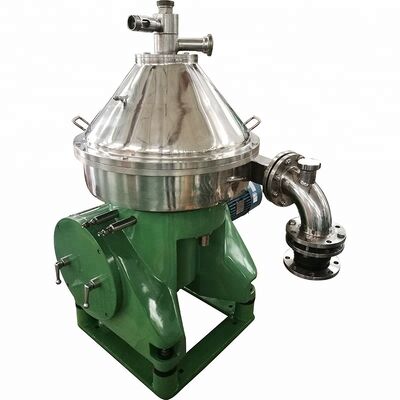

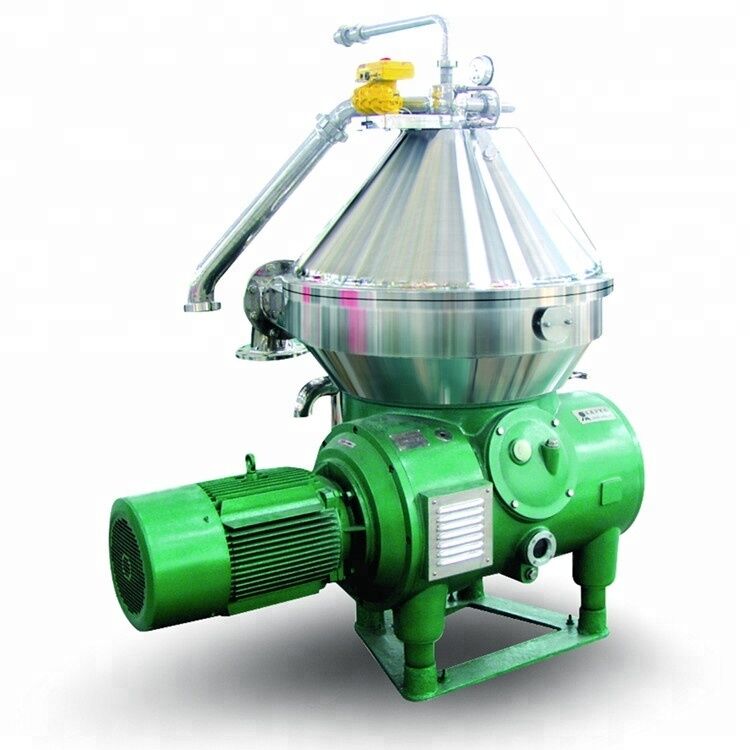

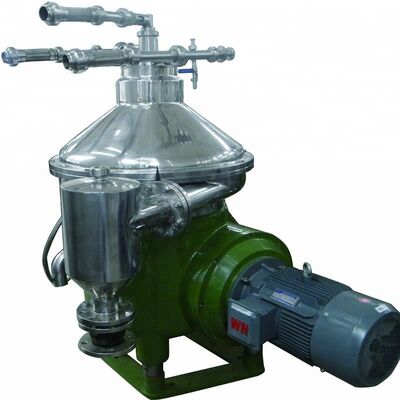

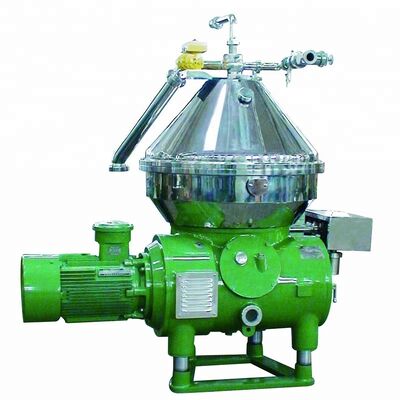

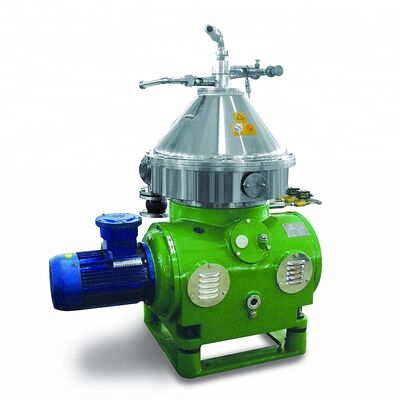

Self Cleaning Solid Bowl Oil Disc Liquid Centrifuge Separator
The oil centrifuge disc separator is a high-efficiency gravity separation equipment featuring compact design, smooth operation, sealed material handling, and reliable performance. This fully automated system is widely used for liquid-liquid separation, solid-solid separation, clarification, and concentration processes.
Product Applications
Vegetable Oil Processing: Degumming, de-soaping, and water washing in vegetable oil refining for colza oil, cottonseed oil, corn oil, palm oil, soybean oil, peanut oil, rice oil, sesame oil, sunflower oil, and more.
Additional Applications: Refining of animal oils and mineral oils, plus liquid-liquid and liquid-solid separation in light industry, chemical, pharmaceutical, and food industries.
Specifications
| Treatment Capacity |
Model |
| 10-60 TPD |
DHZ360 |
| 60-160 TPD |
DHZ470 |
| 160-250 TPD |
DHZ500 |
| 250-350 TPD |
DHZ550E |
Main Functions
Vegetable Oils: Colza Oil, Cottonseed oil, Corn oil, Palm oil, Soybean oil, Peanut oil, Rice oil, Sesame oil, Sunflower oil
Animal Oils: Fish oil and other animal fats
Industry Applications
Vegetable oil refinery factory
Oil extraction factory
Main Features
- Easy installation and maintenance
- Full-automatic vibration detector for real-time monitoring
- Automatic alarm system
- PLC control with LED touch screen interface
- European advanced electric positioner control for heavy-phase centripetal pump
- High-speed operation with stability and low noise
- Stable outlet pressure with large regulating sphere for easy operation
- Self-discharging and self-cleaning capabilities
Working Principle
The disc separator or centrifuge is specifically designed for 2-phase and 3-phase separation processes. Two-phase separation removes suspended solids from liquids or separates two immiscible liquids with different specific gravities. Three-phase separation simultaneously separates two immiscible liquid phases and a solid phase.
Technical Specifications
| Material |
Super stainless steel |
| Function |
High-speed operation |
| Assembly |
Precision assembly |
| Speed |
5000-12000 RPM |
Rotating Bowl Drum Components
All components are manufactured from stainless steel with high-quality machining, refining processes, and dynamic balancing for optimal performance.
Disc Stack
All discs are constructed from stainless steel with precision refining machining for superior separation efficiency.
Shaft Components
Vertical and horizontal shafts manufactured from stainless steel with high-quality machining and refining processes.
Packaging & Delivery
| Size |
Varies by model |
| Weight |
1600kg |
| Packaging Details |
Standard wooden box packaging (Size: L*W*H). For European exports, wooden boxes are fumigated. Alternative packaging available for tight containers or special customer requests. |
Our Company
Jiangsu Juneng Machinery Co., Ltd / Juneng Machinery (China) Co., Ltd. - China's largest production factory for separators, centrifuges, and filters.
Certifications
CE certificates, ASME U certificate, and ISO 9001 certification.
Our Services
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- Factory viewing arrangements
After-Sales Service
- Machine installation and operation training
- Overseas engineer service availability
Frequently Asked Questions
How can we visit your factory?
International visitors: Fly to Shanghai airport - we provide airport pickup. Domestic visitors: Travel to Wuxi station by air or train - we provide railway station pickup.
How do you ensure product quality?
As a state-owned enterprise with over 30 years of experience, we maintain strict operational policies, advanced processing machinery, licensed workers, international brand components, and comprehensive testing throughout production.
What payment methods do you accept?
We accept most payment methods, primarily T/T and L/C at sight.
What is the warranty period?
12 months after commissioning.
How can I trust your company?
10+ years on Alibaba.com as golden suppliers, multiple authority certificates (CE, ISO9001, Alibaba onsite check), and Trade Assurance Limit of US$42,000+.
What are your shipment terms and delivery time?
Standard delivery: 20 days. Customized machines: 30 days. Terms vary by order quantity.
Do you offer discounts?
We strive to provide the best pricing while maintaining quality service.
