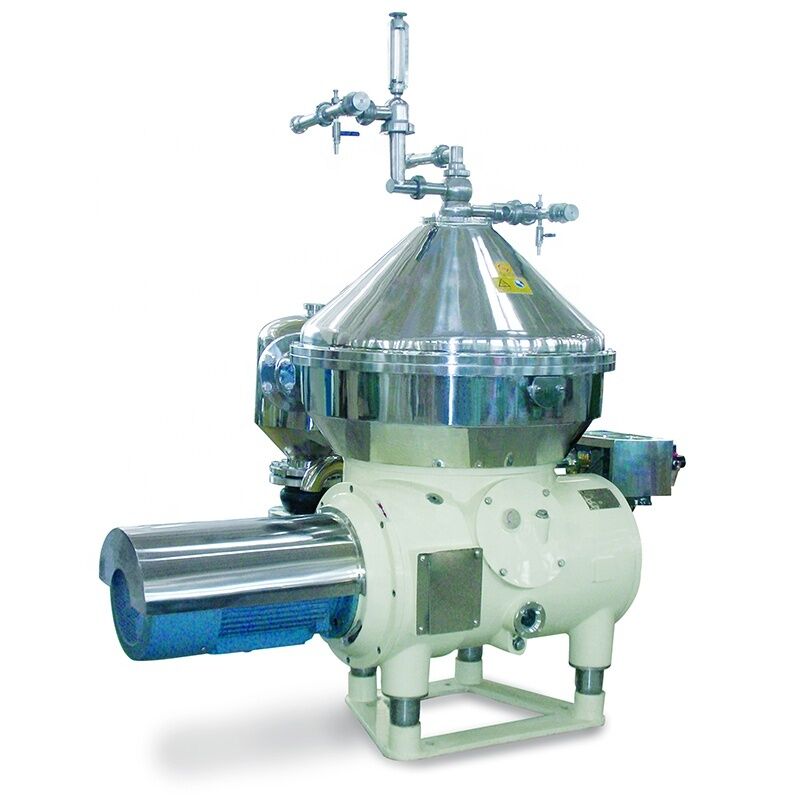

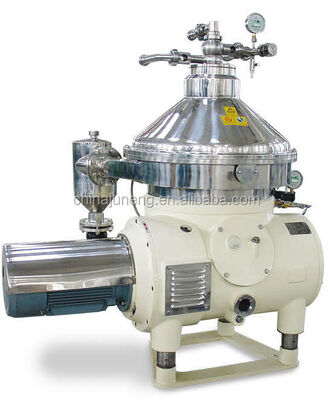

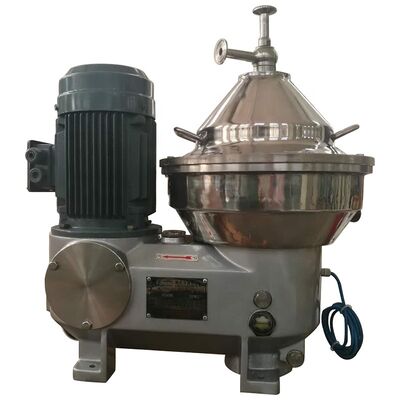

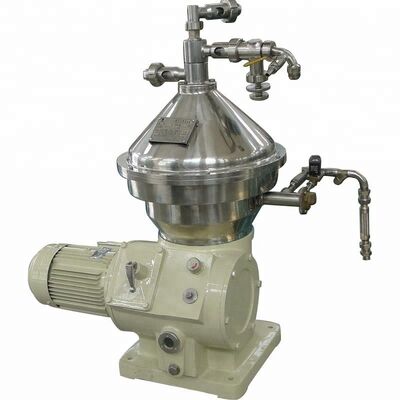

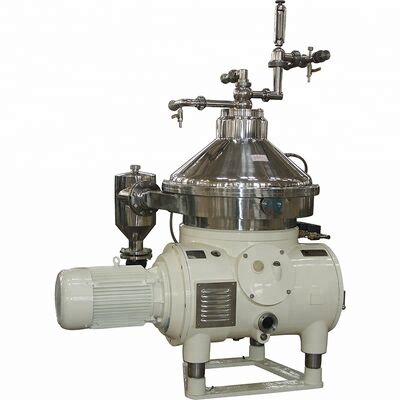

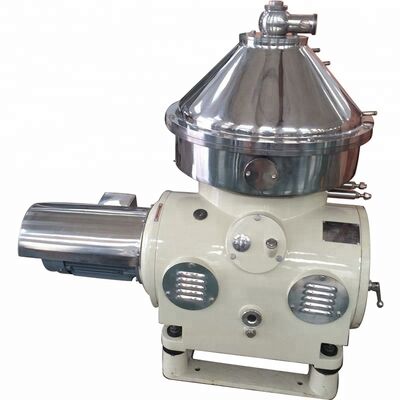

Disc Stack 2 Phase Milk Clarify Centrifuge Separator
Product Overview
Juneng's disc stack 2-phase milk clarify centrifuge separator is engineered for precision separation in dairy processing. With specialized design features including centripetal pump and optimized inlet/outlet ports, this equipment ensures gentle material handling to preserve nutritional value, freshness, and original flavor while effectively separating cream from milk and removing impurities.
Applications
This centrifugal separator is primarily used in milk processing for continuous separation of cream and defatted milk from pure milk, while simultaneously removing impurities and sediments. It enables milk standardization based on fat content and can separate extremely small solid particles (less than 1mm) from liquid suspensions.
- Hot milk separation
- Cold milk separation
- Whey protein separation
- Buttermilk separation
- Dairy whey clarification
- Disinfection of dairy products
- Casein processing
- Syrup clarification
- Vegetable juice clarification
- Tea drinks, coffee, beer and other liquid clarification
Technical Specifications
DHN Model - Dairy Clarification
| Model |
Capacity (L/H) |
Inlet Pressure |
Outlet Pressure |
Weight |
Dimension (mm) |
| DHN360 |
2000-5000 |
0.05 Mpa |
0.1-0.35 Mpa |
1200 kg |
1530×1150×1500 |
| DHN470 |
5000-10000 |
0.05 Mpa |
0.1-0.4 Mpa |
1600 kg |
1800×1200×1750 |
| DHN550 |
10000-20000 |
0.05 Mpa |
0.1-0.4 Mpa |
2300 kg |
1950×1550×1960 |
| DHN616 |
25000-35000 |
0.1 Mpa |
0.3 Mpa |
3000 kg |
2185×1728×2082 |
DHNZ Model - Dairy Skimming
| Model |
Capacity (L/H) |
Inlet Pressure |
Outlet Pressure |
Weight |
Dimension |
| DHNZ204 |
500-1000 |
0.05 Mpa |
0.1-0.2 Mpa |
520 kg |
810×850×1350 |
| DHNZ360 |
1000-3000 |
0.05 Mpa |
0.1-0.2 Mpa |
1200 kg |
1530×1150×1500 |
| DHNZ470 |
3000-7000 |
0.05 Mpa |
0.1-0.2 Mpa |
1600 kg |
1800×1200×2030 |
| DHNZ550 |
5000-10000 |
0.05 Mpa |
0.1-0.2 Mpa |
2300 kg |
1950×1550×1960 |
Working Principle
The disc separator is designed for two-phase and three-phase separation. Two-phase separation involves separating suspended solids from liquid or separating two immiscible liquids with different specific gravity. Three-phase separation simultaneously separates two immiscible liquid phases and solid particles.
Key Advantages
- Continuous feeding operation
- High separation factor
- Automatic residue discharging
- CIP (Clean-in-Place) capability
- Hydraulic coupling driving for longer service life
- PLC system automatic control
- Excellent milk skimming performance
- High efficiency operation
- Lower energy consumption
- Gentle feeding and discharging through optimized inlet/outlet design
Technical Features
Rotating Bowl Drum Components
All parts and components contacting materials are manufactured from stainless steel, minimizing corrosion and meeting strict hygienic requirements for food processing. The separator bowl undergoes precise dynamic balancing for stable operation with minimal vibration and noise.
Bowl Assembly Specifications
Material: Super stainless steel
Function: High-speed operation
Assembly: Precision assembly
Speed: 5000-12000 RPM
PLC Control System
The separator includes an automatic control cabinet featuring industrial computer and auto overload protection. This highly automated system provides excellent adaptability to process changes, easy adjustment capabilities, and significantly reduces operator workload.
Quality Assurance
Juneng maintains a first-class laboratory with advanced instrumentation for comprehensive testing including chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographic inspection, magnetic inspection, and ultrasonic inspection. This rigorous approach ensures every component meets the highest standards of stability and reliability.
Packaging & Delivery
| Packaging Specification |
Details |
| Size |
1800(L) × 1800(W) × 1800(H) mm (varies by model) |
| Weight |
1000kg - 3000kg |
| Packaging Details |
Standard wooden box packaging. European exports include fumigated wooden boxes. Alternative packaging available for tight containers or special customer requirements. |
International Collaboration
Juneng focuses on international technical and commercial collaboration, learning from advanced management systems and expertise from the United States, Canada, Germany, Russia, and Southeast Asian countries. This global perspective drives continuous improvement and innovation.
Frequently Asked Questions
Factory Visits
Q: How can we visit your factory?
A: International visitors: fly to Shanghai airport, we provide airport pickup. Domestic visitors: fly or train to Wuxi station, we provide railway station pickup.
Quality Assurance
Q: How do you ensure product quality?
A: State-owned enterprise with 30+ years experience, strict operational policies, advanced processing machinery, licensed operators, international brand components, comprehensive testing throughout production.
Payment Methods
Q: What payment methods do you accept?
A: Primarily T/T and L/C at sight, with most standard payment methods accepted.
Warranty
Q: What is the warranty period?
A: 12 months warranty after commissioning.
Company Trust
Q: How can I trust your company?
A: 10+ years on Alibaba.com, golden supplier status, CE, ISO9001, Alibaba onsite check certifications, Trade Assurance Limit of US$42,000+.
Delivery
Q: What are shipment terms and delivery times?
A: Standard delivery: 20 days. Customized machines: 30 days. Depends on order quantity.
Pricing
Q: Do you offer discounts?
A: We strive to provide competitive pricing with excellent service.
