Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation

Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation
Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation

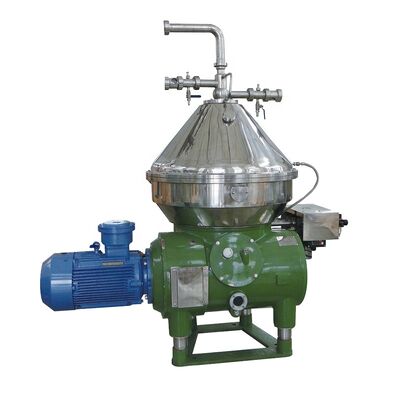

Μεγάλες Εικόνας :  Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation

Λεπτομέρειες:
Τόπος καταγωγής: Jiangsu, Κίνα
Μάρκα: JUNENG
Πιστοποίηση: CE
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1
Τιμή: CN¥170,644.24-213,305.29

Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation

περιγραφή
Τύπος προϊόντος: Σωρός δίσκων Βασικά εξαρτήματα: Μοτέρ
Δυναμικό: 110 V, 380V, 415V, 460V Εξουσία: 4-22 kW
Διάσταση: 1800*1200*1800 Υλικό: SS304, SS316
Λειτουργία: Υγρό Υγρό Στερεό Φυγόκεντρο Βάρος: 1300 κιλά
Ικανότητα θεραπείας: 4000-7000 L/H, 6000-15000 L/H Πίεση εισόδου: 0,05 MPA
Πίεση εξόδου: 0.1-0.3 MPA Ισχύς κινητήρα: 15 kw, 22 kw
Βάρος μοντέλου: 1880 Kg, 2200 Kg Διάσταση περιγράμματος: 1800*1200*1800 mm, 1850*1550*2050 mm
Ταχύτητα λειτουργίας: Υψηλή ταχύτητα
Επισημαίνω:

Eco-Friendly Disc Oil Separator

,

Stainless Steel Biodiesel Separator

,

Fully Automatic Glycerin Separator

Biodiesel Industrial Oil Separator Glycerin Separator
Biodiesel is a clean, renewable energy source and an excellent substitute for petroleum diesel. Produced through ester exchange processes using raw materials such as plant oil crops, wild plants, engineering microalgae, animal fats, and food waste oil, biodiesel represents a sustainable "green energy" solution with significant strategic importance for economic development, energy alternatives, and environmental protection.
Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation 0
Product Competitive Advantages
  • High-speed operation with stable performance
  • Fully enclosed inlet and outlet systems
  • Low noise levels during operation
  • Excellent separation efficiency
  • High oil recovery rate
  • Fully automatic control system
  • Easy to operate and maintain
Product Specifications
Model Treatment Capacity (L/H) Inlet Pressure (Mpa) Outlet Pressure (Mpa) Motor Power (Kw) Weight (Kg) Outline Dimension (mm)
DHSY470 4000-7000 0.05 0.1-0.3 15 1880 1800*1200*1800
DHSY550 6000-15000 0.05 0.1-0.3 22 2200 1850*1550*2050
Product Applications
  • Separation of methyl ester, glycerin, catalyst, de-soap, and methanol
  • Methyl washing processes
  • Extraction of fatty acids
  • Glycerol desalination
Company Introduction
Juneng Group is a large-scale industrial manufacturer in China with subsidiaries including Juneng Machinery (China) Co., Ltd and Jiangsu Juneng Machinery Co., Ltd. The group specializes in research, development, and manufacturing of industrial filters, separators, and pumps.
Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation 1 Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation 2
As an industry leader serving the fats, chemical, pharmaceutical, beverage, and petrochemical industries, Juneng Group has established itself as a globally recognized producer and supplier. The company operates three production bases totaling 280,000 square meters in Nanjing City and Yixing City, Jiangsu province, with a workforce of over 1,300 employees and more than 1,500 units of advanced production equipment and testing instrumentation.
Exhibition
Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation 3
Certifications
Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation 4 Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation 5
Packing & Delivery
Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation 6 Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation 7
Our Service
Pre-sale Service
  • Prompt response to inquiries
  • Competitive pricing compared to other suppliers
  • Factory visits available upon request
Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation 8
After-sale Service
  • Regular follow-up and tracing services
  • One-year warranty to ensure optimal machine performance
  • Comprehensive spare parts inventory available
Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation 9 Eco-Friendly Stainless Steel Fully Automatic Disc Oil Separator for Biodiesel and Glycerin Separation 10
