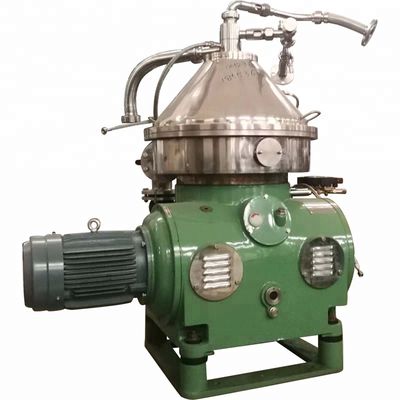

Disc Stack Milk Cream Separator Machine
Product Application
Juneng dairy separator features large capacity, excellent deoiling performance, high efficiency, and low energy consumption. The advanced inlet and outlet design ensures gentle treatment throughout the separation process, preventing air intrusion and maintaining product quality.
Milk products vary widely in composition, from simple milk with different fat contents to diverse dairy products including butter, cheese, quark, and yogurt.
Main Features
- High rotating speed
- Operating stability
- Completely sealed inlet and outlet system
- Low noise operation
- Excellent separation efficiency
| Model |
DHNZ360 |
| Material |
SS304 |
| Structure |
Edge covered with SS304 |
| Function |
Liquid-liquid-solid separation |
| Application |
Milk skimming |
| Capacity |
1000-3000 liters per hour |
| Discharge |
Automatic |
Machine Parts
Name: Main Parts of Drum
Brand: Juneng
Origin: China
From left to right: discs, drum cover, disc gland, and slide piston.
Name: Shaft
Brand: Juneng
Origin: China
The vertical shaft transmits power and includes speed step-up gear (small spiral gear) and high-speed rotating components. The cross shaft transfers motor power to the vertical shaft and main drum parts.
Name: Assembled Drum
Brand: Juneng
Origin: China
The drum is the high-speed rotating component that performs material separation, serving as the heart of the separator.
Name: Equipment Base
Brand: Juneng
Origin: China
The underframe supports the entire separator and connects to the base. All four supporting feet feature damping rubber pads that effectively isolate vibration between the separator and building.
Certifications
Our company has achieved numerous certifications including:
- ASME U (Certificate No.: 38793)
- ISO 9001:2015 (Certificate No.: CN1299-QC)
- ISO 14001:2015 (Certificate No.: CN1299-EC)
- ISO 45001:2018 (Certificate No.: CN1299-SC)
- BV and CE certifications
Our Service
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- Factory viewing opportunities
After-Sales Service
- Installation and operation training
- Overseas engineer support
Packing & Delivery
| Packaging |
|
| Size |
123 (L) * 456 (W) * 789 (D) |
| Weight |
1.2 T |
Packaging Details: Standard packaging uses wooden boxes (Size: L*W*H). For European exports, wooden boxes are fumigated. For tight container fits, we use PE film or accommodate special customer requests.
